高壓清洗機 (熱水)

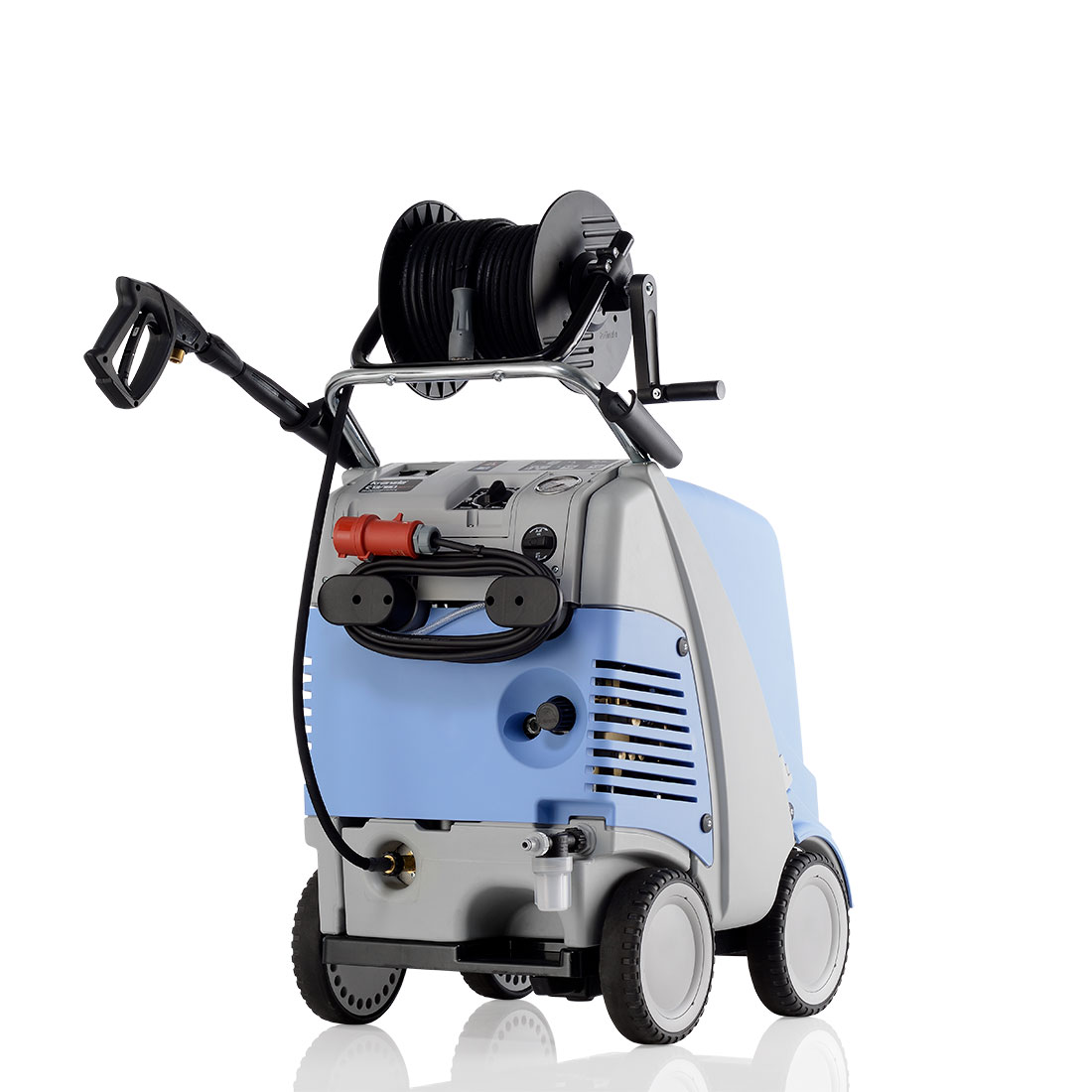

Kraenzle therm C13/180 熱水高壓清洗機
Kraenzle therm C13/180 熱水高壓清洗機 (380V)
HKD$42,440.00

TECHNICAL DATA HOT WATER

Hot water output °C 12-80
Steam level °C 150
Oil consumption at max. heating output kg/h | l/h 5.8 | 6.8
Heating oil onsumption ΔT 45° kg/h | l/h 3.8 | 4.5
Heating output kW 60



TECHNICAL SPECIFICATIONS

Operating pressure bar | MPa 30-180 | 3-18
Water output l/min | l/h 13 | 780
Admissible overpressure bar | MPa 200 | 20
Motor speed Rpm 1400
Connection V | ~ | Hz | A 400 | 3 | 50 | 8.7
Power intake | Power output kW 4.8 | 4.0
Power supply cable m 7.5
Dimensions L x W x H mm 860 | 580 | 1220
Weight kg 169

EQUIPMENT

High-pressure hose

m | Ord. no.

 15 (DN8) | 44879

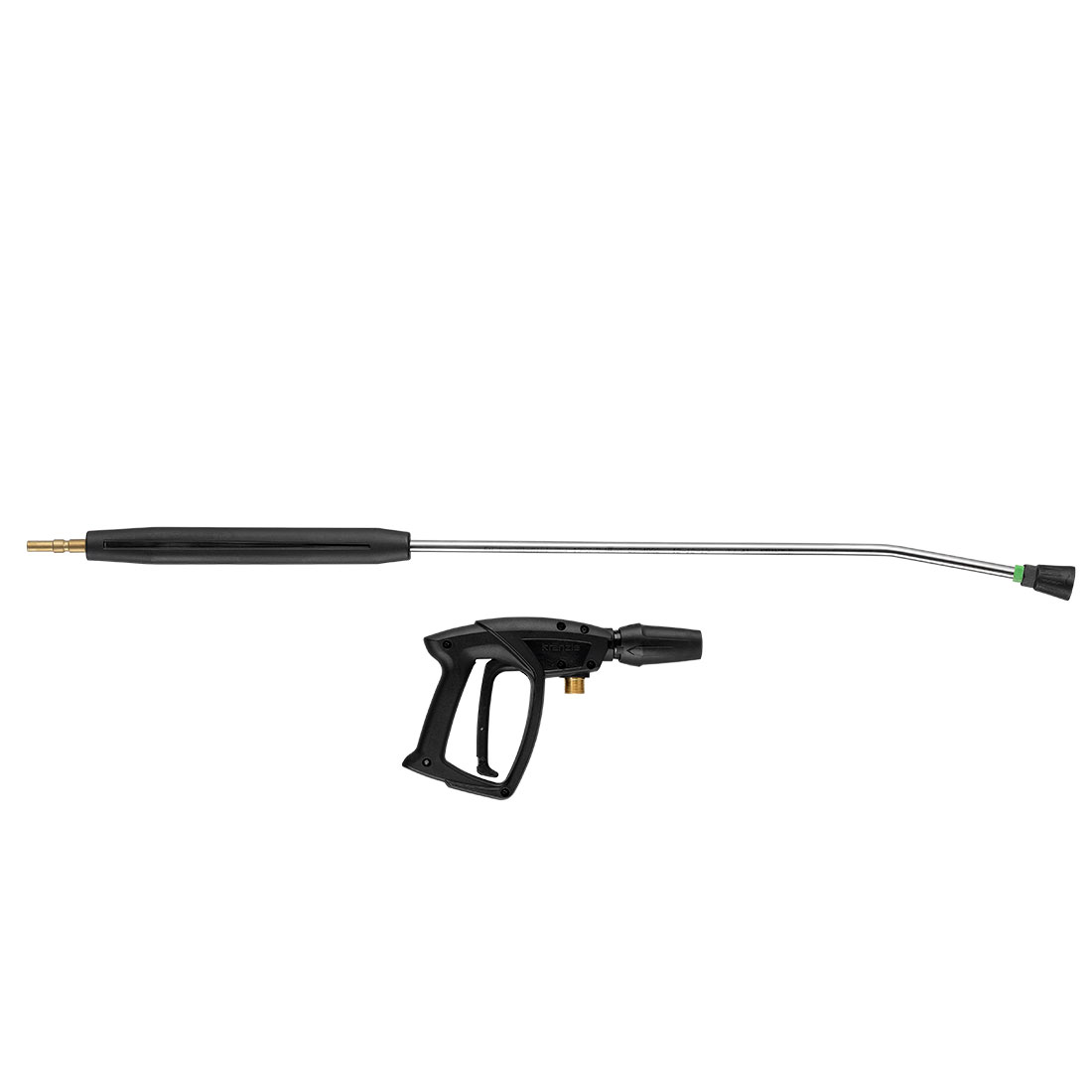

Trigger gun with safety catch Nozzle | Ord. no. Starlet 3 | 12500
Stainless steel lance with flat-jet nozzle Nozzle | Ord. no. 045 | 12420-D25045
Water inlet filter Ord. no. 13310

數量
- +

Product characteristics:



  • Three-phase electric power (400V)
  • All-terrain chassis
  • Integrated hose reel with folding crank handle
  • 15 m high-pressure hose (with hose reel)
  • Pressure regulation: working pressure infinitely variable
  • Total stop system with delayed motor cut-off
  • Clearly arranged control panel to regulate the water temperature
  • 7.5 m connection cable with cable winder
  • Organisation system
  • Impact protection
  • Safety shut-off
  • Flow monitoring
  • Combustion chamber pre-ventilation
  • Optical flame monitoring system
  • Safety thermostat
  • 4-fold safety system with overload protection
  • Burning stop in case of fuel oil shortage
  • Detergent suction
  • Removable bonnets to protect the mechanical components
  • Parking brake for a secure hold
  • Water inlet filter
